TRASERSCREEN DB-60

Tried and tested in the most demanding conditions

DESCRIPTION AND BASIC DATA

TRASERSCREEN DB-60

Vehicle type: trailer
Category: O2
Operating weight: 3,4t

MADE AND DESIGNED IN SLOVAKIA.

Return on investment within one year!

It can be used on all loose materials.

ec4b011c-e051-4d8a-aea5-58208b82702b

Screenes 99% of all loose materials

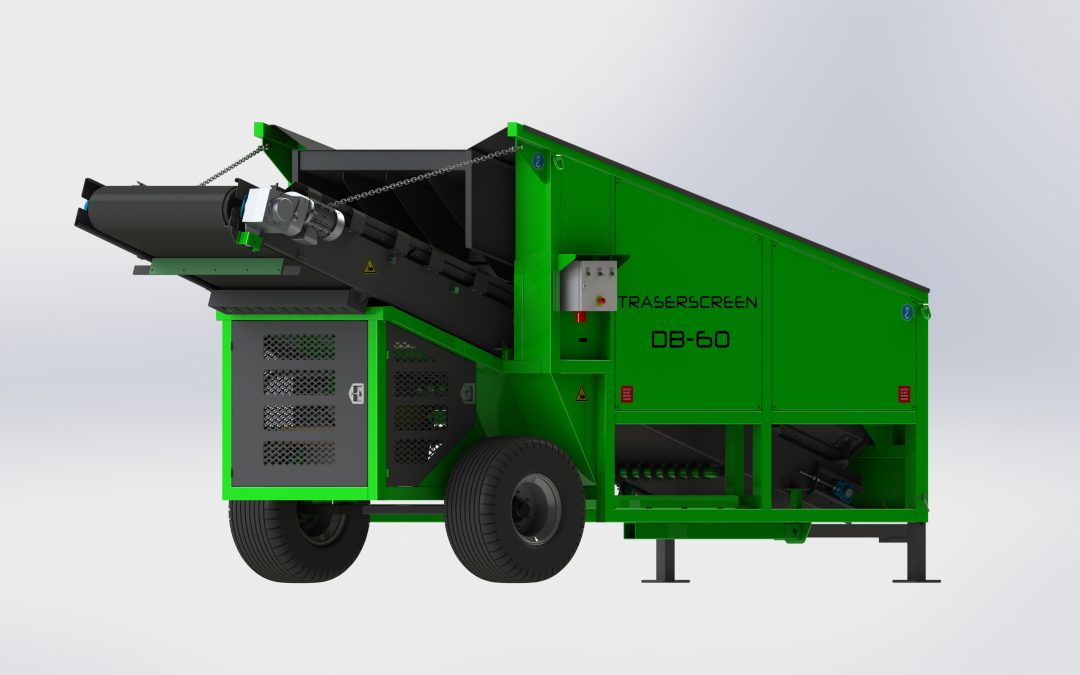

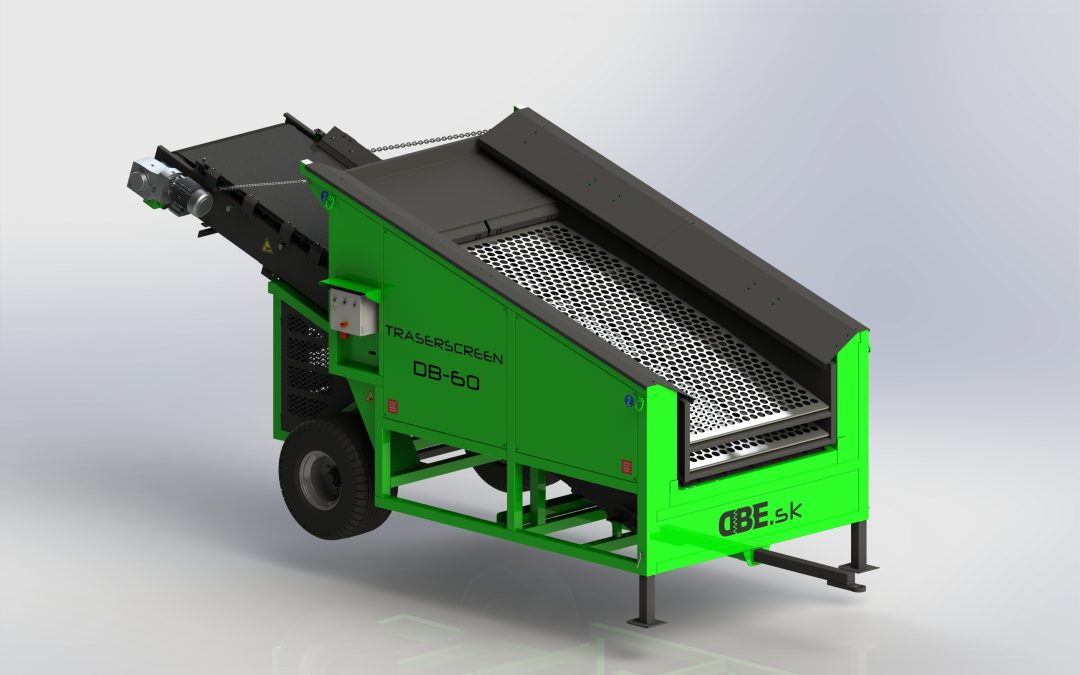

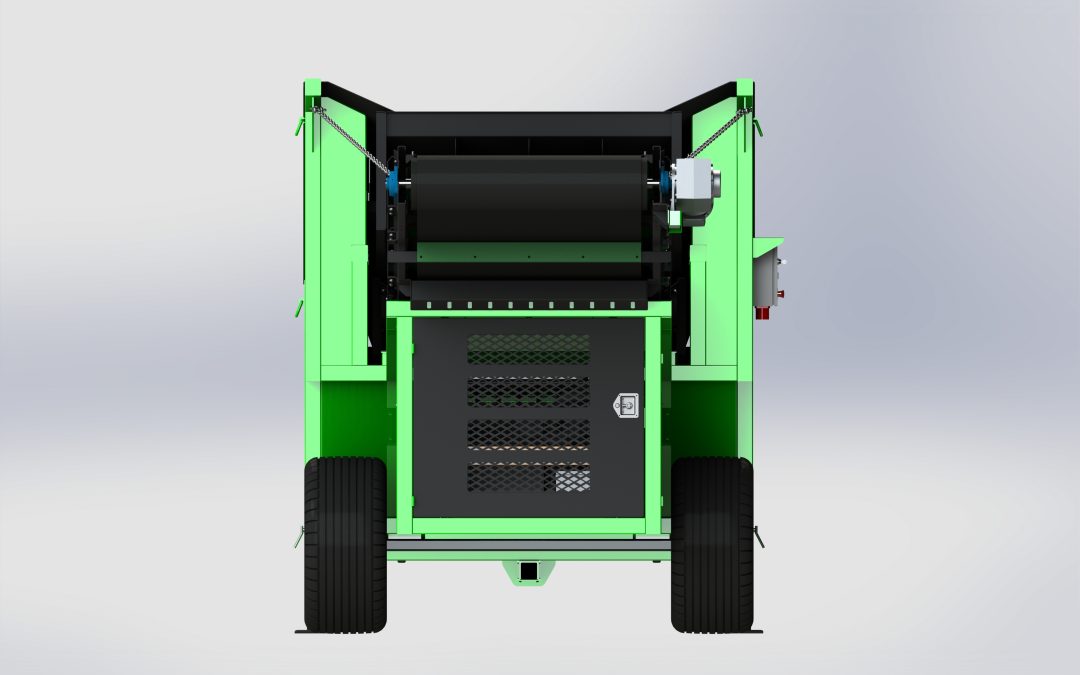

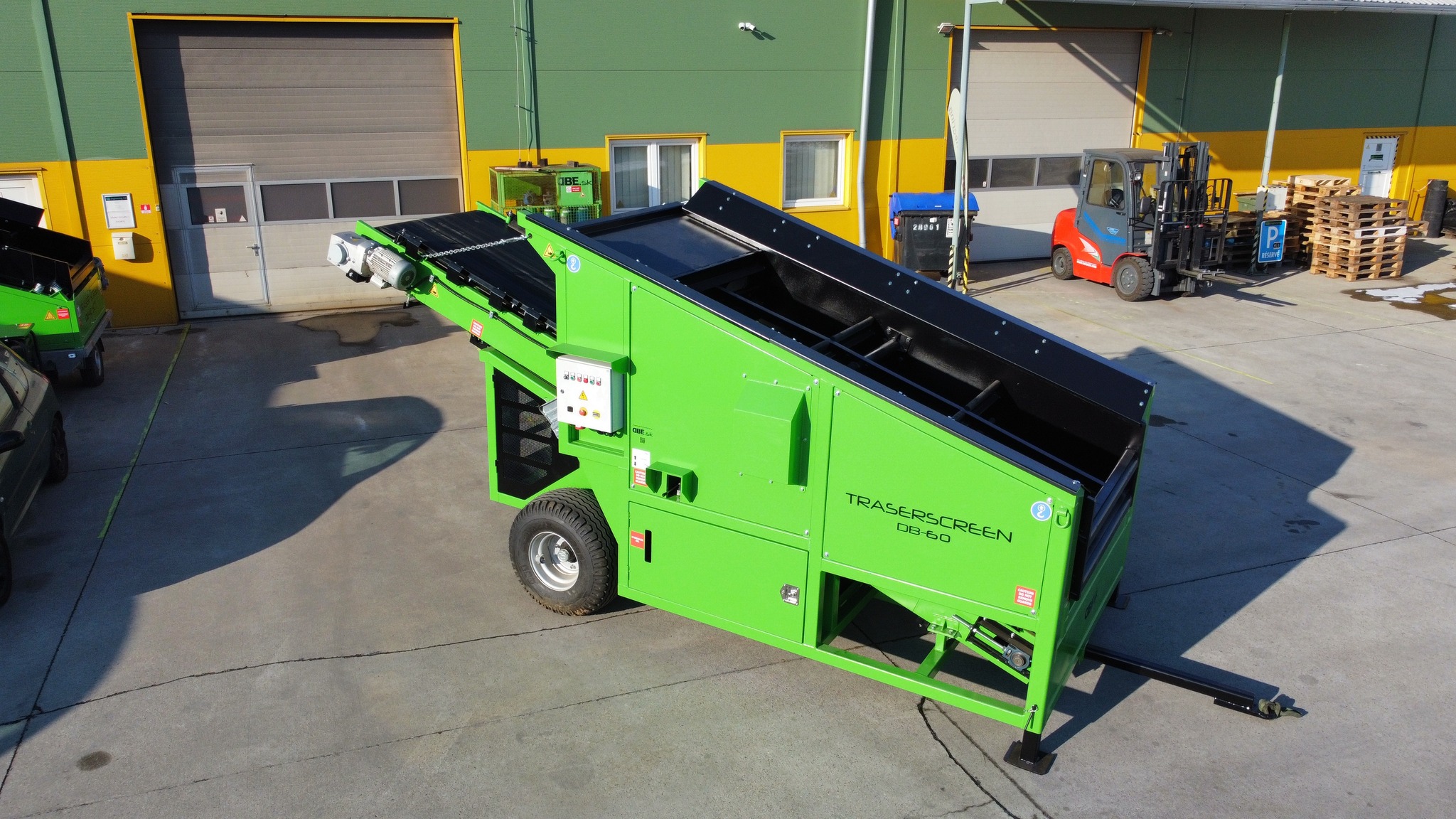

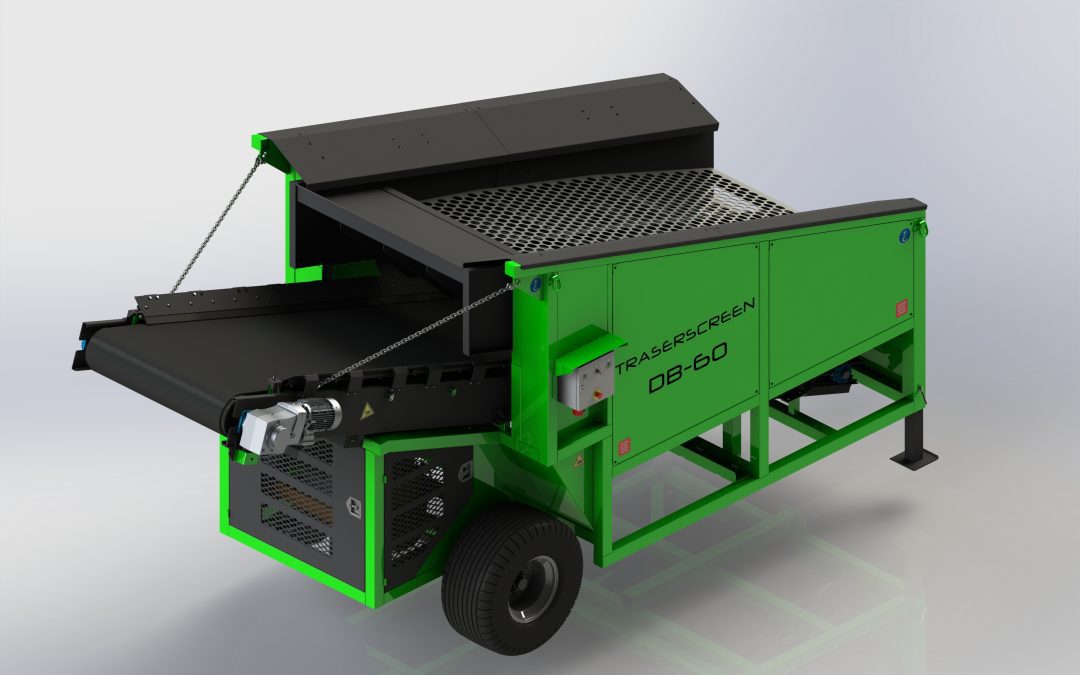

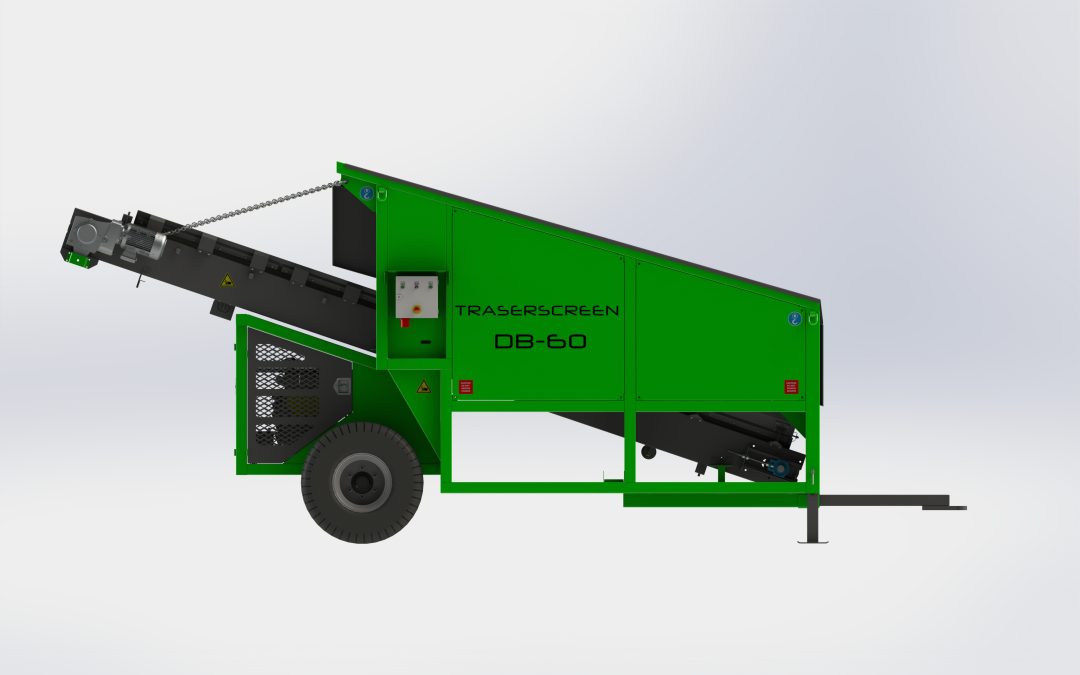

Mobile vibrating screener

Mobilný vibračný triedič.
The screener includes a built-in RPM meter of the screen box and aluminum wheel locking wedges. Possibility of delivery with petrol generator. Drawbar for easy transport for being towed by tractor or truck. The conveyor for fine fraction.
db25s

TECHNICAL PARAMETERS

Transport length5 437 mm
Transport width2 372 mm
Transport height2 725 mm
Weight3400 kg
Mesh length2850 mm
Mesh width1390 mm
Mesh area3,97 m2
Number of meshes2 (1 sito v 2 vrstvách)
Number of fractions2
Hopper width1 972 mm
Offtake width
Drive: electro-hydraulic unit | conveyor gear motor5,5 kW | 3 kW
Screeningdepending on the material
Optional modifications   No
The minimum need for a petrol generator 22kVA

All technical parameters are subject to change without prior notice.

For all machines: warranty of 24 months or 1000 engine hours
